Кабина

CAB MOUNTING 6010




ITEM PART NO DESCRIPTION QTY
3 71N8-47000 MIRROR & STAY ASSY-LH 1
4 71E1-60340 HAMMER-SAFETY 1
5 S141-040166 SCREW-FLAT HD 2
6 S017-120706 BOLT-HEX 8
7 S037-122526 BOLT-W/WASHER 1
8 S403-122006 WASHER-PLAIN 8
9 S411-120006 WASHER-SPRING 8
10 S411-100006 WASHER-SPRING 4
11 S403-102006 WASHER-PLAIN 4
12 S017-100256 BOLT-HEX 4
13 71N6-03560 RAIL-HAND 1
14 71N6-10270 PLATE 1
15 S131-051646 SCREW-W/WASHER 2
16 71N6-03632 SUN VISOR ASSY 1
16-1 S132-060856 • SCREW-W/WASHER 4


CAB ASSY (1/6, STD & FOG TYPE) 6020




ITEM part no DESCRIPTION QTY
* 71N6-10001 CAB ASSY 1
  73N6-10000 CAB ASSY 1
1 71N6-00011 • CAB WA 1
  73N600010 • CAB WA 1
4 71N602400 • SUN ROOF WA 1
14 71N6-02770 • STRIKER 1
19 71N6-02810 • UNING(1)-HEAD 1
20 71N602820 • UNING(2)-HEAD 1
21 71N6-02831 • RAIL-HAND 1
22 71N6-2841 • STOPPER 2
24 71N6-2860 • LATCH-ROOF 1
25 71N6-02870 • BRACKET-ROOF 1
31 71N6-02920 • HOOK 1
35 E171-1147 • HANDLE 1
36 71EH-13150 • BUMPER-RUBBER 2
52 S772-020300 • WEATHER STRIP 1
58 71N6-3181 • STOPPER 1
59 71N6-03191 • STOPPER 1
60 71N6-3201 • GAS SPRING 2
68 E171-1310 • PLUG 18
69 S491-080162 • PIN-CLEVIS 4
70 S461-200162 • PIN-SPUT 4
71 S403-082006 • WASHER-PLAIN 4
74 S015-080206 • BOLT-HEX 4
75 S411-080006 WASHER-SPRING 4
78 S403-052006 WASHER-PLAIN 8
81 S141-060206 SCREW-FLAT HD 4
82 S145080166 SCREW-FLAT HD 2
83 S203-101006 NUT-HEX 4
84 S141-040206 SCREW-FLAT HD 2
91 S017-160206 BOLT-HEX 3
92 S411-160006 WASHER-SPRING 3
93 S403-162006 WASHER-PLAIN 3
96 S161-050166 SCREW-RD HD 8
97 S411-050006 WASHER-SPRING 8
101 S403-082006 WASHER-PLAIN 4
108 73N6-05000 GUARD ASSY 1
108-1 73N605010 GUARD WA-TOP 1
108-2 73N6-05020 GUARD WA-FRONT 1
108-3 S441-120006 WASHER-HARDENED 6
108-4 S037-122526 •• BOLT-W/WASHER 8
108-5 S017-120306 •• BOLT-HEX 6


CAB ASSY (1/6, ROOF TYPE) 6025




ITEM part no DESCRIPTION QTY
* 72N6-10000 CAB ASSY 1
1 71N6-00011 • CAB WA 1
4 72N605000 • COVER-SUN ROOF ASSY 1
4-1 72N6-05010 •• COVER-ROOF 1
4-2 72N6-05020 •• HINGE 2
4-3 72N6-05030 •• PAD-RUBBER 2
4-4 S175-060206 • • SCREW-SOCKET RD HD 8
4-5 S291 -060006 • • NUT-DOMED CAP 8
4-6 72N6-5040 •• PLATE-HINGE 2
4-7 E171-1147 • • HANDLE 1
4-8 S131-052046 • • SCREW-W/WASHER 2
4-9 S131-051556 •• SCREW-W/WASHER 2
4-10 S411-050006 •• WASHER-SPRING 4
4-11 S291-050006 • • NUT-DOMED CAP 6
4-12 72N6-5050 •• PLATE-HANDLE 2
4-13 72N6-5060 • • PAD-RUBBER 2
4-14 72N6-5070 •• PLATE 1
4-15 71N6-3201 •• GAS SPRING 2
4-16 71N6-2860 •• LATCH-ROOF 1
4-17 S175-050256 •• SCREW-SOCKET RD HD 4
4-18 S411-060006 •• WASHER-SPRING 8
4-19 72N6-5080 •• PAD-RUBBER 1
4-20 72N6-5090 •• PLATE 1
4-21 S403-082006 • • WASHER-PLAIN 4
4-22 72N6-05110 PLATE-GAS SPRING 2
4-23 72N6-05120 PAD-RUBBER 2
4-24 72N6-5130 PLATE-GAS SPRING 2
4-25 S491-080162 PIN-CLEVIS 4
4-26 S461-200162 PIN-SPLIT 4
4-27 72N6-05100 PAD-RUBBER 1
14 71N6-2770 STRIKER 1
19 71N6-02810 LINING(1)-HEAD 1
21 71N6-02831 RAIL-HAND 1
22 71N6-02841 STOPPER 2
31 71N6-2920 HOOK 1
36 71EH-13150 BUMPER-RUBBER 2
52 S772-020300 WEATHER STRIP 1
58 71N6-3181 STOPPER 1
59 71N6-3191 STOPPER 1
68 E171-1310 PLUG 18
81 S141-060206 • SCREW-FIAT HD 4
82 S145-080166 • SCREW-FIAT HD 2
83 S203-101006 • NUT-HEX 4
84 S141-040206 • SCREW-FLAT HD 2
91 S017-160206 • BOLT-HEX 3
92 S411-160006 • WASHER-SPRING 3
93 S403-162006 • WASHER-PLAIN 3


CAB ASSY (2/6) 6030




ITEM part no DESCRIPTION QTY
* @ CAB ASSY 1
17 71N6-02790 • WALL TRIM-LH 1
18 71N6-02801 • WALL TRIM-RH 1
38 71N6-03061 • HOLDER 1
39 71N6-03071 • HOLDER 1
40 71N6-3081 • HOLDER 1
41 71N6-03091 • LATCH ASSY 1
42 71N6-03101 • STOPPER-LH 1
43 71N6-03111 • STOPPER-RH 1
44 71N6-03121 • COVER-REAR 1
45 71N6-03131 • DUCT-LH 1
46 71N6-03141 • DUCT-RH 1
61 71N6-03210 • INSULATION FOAM 1
62 71N6-03220 • INSULATION FOAM 1
68 E171-1310 • PLUG 11
74 S015-080206 • BOLT-HEX 2
75 S411-080006 • WASHER-SPRING 2
76 S162-060206 • SCREW-C/RECESS.RD 12
77 S162-060166 • SCREW 6
81 S141-060206 • SCREW-FLAT HD 4
85 71N6-03300 • AIR VENT 6
86 71N6-03311 • HOLDER 1
87 S161-080256 • SCREW-RD HD 3
94 71N6-20341 • RAIL-HAND 1
95 71N6-03601 COVER-BACK LATCH 1
96 S161-050166 SCREW-RD HD 2
97 S411-050006 WASHER-SPRING 2
98 S411-100006 WASHER-SPRING 5
99 S403-102006 WASHER-PLAIN 2
100 S017-100206 BOLT-HEX 5
101 S403-082006 WASHER-PLAIN 2
102 S403-062006 WASHER-PLAIN 12
103 S411-060006 WASHER-SPRING 6
104 71N6-03660 SPONGE 1
105 71M8-20870 HOLDER-CUP 1
106 S141-040166 SCREW-FLAT HD 1

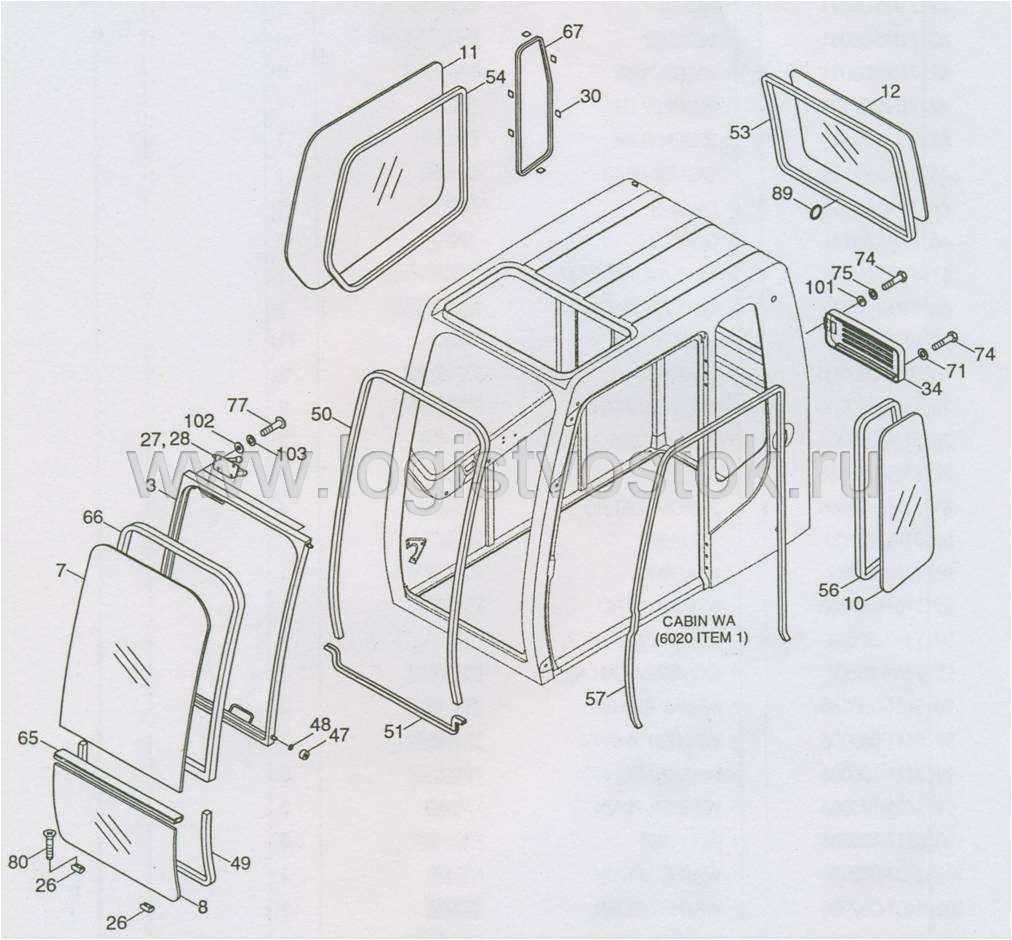

CAB ASSY (3/6) 6040






ITEM part no DESCRIPTION QTY
* @ CAB ASSY 1
3 71N6-02201 • FRONT WINDOW WA 1
7 71N6-02700 •  GLASS 1
  71N4-02700 •  GLASS 1
8 71N6-02711 • GLASS 1
10 71N6-02731 • GLASS 1
11 71N6-02740 • GLASS 1
12 71N6-02750 • GLASS 1
26 71N64-02880 • INSULATOR 2
27 71N6-02891 • LATCH ASSY 1
28 71N6-02901 • LATCH ASSY 1
30 71EH-10430 • RUBBER 6
34 71N6-02950 • COVER-AIR VENT 1
47 71N6-03150 • ROLLER 4
48 S403-101002 • WASHER-PLAIN 4
49 71N6-03160 • SEAL 1
50 71N6-03480 • SEAL-FRONT 1
51 71N6-03173 • WEATHERSTRIP 1
53 S781-124602 • SEAL 1
54 71N6-03010 • WEATHERSTRIP 1
56 71N6-03030 • WEATHERSTRIP 1
57 S771-036500 • WEATHERSTRIP 1
65 71N6-03250 • SEAL 1
66 71N6-03261 •  SEAL-FRONT GLASS 1
  71N4-03260 • SEAL-FRONT GLASS 1
67 71N6-03040 • SEAL 1
71 S403-082006 • WASHER-PLAIN 1
74 S015-080206 • BOLT-HEX 3
75 S411-080006 • WASHER-SPRING 2
77 S162-060166 • SCREW 8
80 S141-050206 • SCREW 4
89 71N6-03320 • RING 1
101 S403082006 • WASHER-PLAIN 2
102 S403-062006 • WASHER-PLAIN 8
103 S411-060006 • WASHER-SPRING 8


CAB A3SY (4/6, DOOR) 6050




ITEM part no DESCRIPTION QTY
* @ CAB ASSY 1
*-1 71N6-04000 • SIDE DOOR ASSY 1
2 71N6-02000 •• SIDE DOOR WA 1
9 71N6-02720 •• GLASS-DOOR 1
13 71N6-02761 •• HANDLE ASSY 1
13-1 71N6-03390 ••• HANDLE 1
13-2 71N6-03400 ••• HANDLE-INNER 1
13-3 71N6-03410 ••• LATCH 1
13-4 71N6-03420 ••• ROD ASSY-1 1
13-5 71N6-03430 ••• ROD ASSY-2 1
13-6 71N6-03440 ... PIN-1 1
13-7 71N6-03450 ... PIN-2 2
13-8 P560-050006 ••• E-RING 3
16 71N6-03650 • • STRIKER 1
23 71N6-02850 •• HANDLE 1
29 71N6-02910 •• HINGE 2
29-1 S651-060006 ••• NIPPLE-GREASE 1
30 71EH-10430 •• RUBBER 8
32 71N6-02930 •• COVER 1
33 71N6-02940 •• COVER 1
37 71N6-03000 •• WEATHER STRIP 1
55 71N6-03020 •• WEATHER STRIP 1
63 71N6-03230 •• SEAL 1
64 71N6-03240 •• SEAL 1
72 17E1-5146 •• BUMPER-DOOR 2
73 71EH-10400 •• SCREW 14
77 S161-060166 •• SCREW-RD HD 3
79 S161-050206 •• SCREW-RD HD 4
83 S203-101006 •• NUT-HEX 4
96 S161-050166 •• SCREW-RD HD 6
97 S411-050006 •• WASHER-SPRING 10
98 S411-100006 •• WASHER-SPRING 2
100 S017-1002D6 •• BOLT-HEX 2
102 S403-062006 •• WASHER-PLAIN 3
103 S411-060006 •• WASHER-SPRING 3


CAB ASSY (5/6, SASH ASSY) 6060




ITEM part no DESCRIPTION QTY
* @ CAB ASSY 1
5 71N6-02500 • SASH ASSY-DOOR 1
5-1 71N6-02510 •• SASH 1
5-2 71N6-02520 •• SEAL 1
5-3 71N6-02530 •• GLASS 1
5-4 71N6-02540 •• GLASS 1
5-5 71N6-02550 •• LOCK ASSY 2
5-6 71N6-02560 •• HOOK 1
5-7 71N6-02570 •• HOOK 1
5-8 71N6-02580 •• SASH 1
5-9 D19227C1 •• RIVET-BUND 6
6 71N6-02600 • SASH ASSY-LH 1
6-1 71N6-02610 •• SASH 1
6-2 71N6-02620 •• SEAL 1
6-3 71N6-02630 •• GLASS(UPPER) 1
6-4 71N6-02640 •• GLASS(LOWER) 1
6-5 71N6-02550 •• LOCK ASSY 1
6-6 71N6-02570 •• HOOK 1
6-7 71N6-02650 •• STOPPER 2
6-8 71N6-02660 •• SASH 1
6-9 D19227C1 •• RIVET-BUND 3
6-10 S151-030126 •• SCREW-CROSS RECESS 2


CAB ASSY (6/6, DOOR LATCH ASSY) 6070



CAB ASSY (6/6, DOOR LATCH ASSY) 6070


ITEM part no DESCRIPTION QTY
* @ CAB ASSY 1
15 71N6-02781 • LATCH ASSY-BACK 1
15-1 71EH-11260 •• LOCKASSY-LH 1
15-2 71N6-03571 •• LEVER ASSY 1
15-3 71N6-03580 •• ROD 1
15-4 71N6-03590 •• ROD 1
15-5 71EH-11210 •• NUT 1
15-6 S205-081006 •• NUT-HEX 1
15-7 71EH-11250 •• PIN-ROUND 1
15-8 S431-040002 •• WASHER-LOCK 1
15-9 71EH-11240 •• PIN-ROUND 1
15-10 S461-050152 •• PIN-SPLIT 1
74 S015-5080206 • BOLT-HEX 4
75 S411-080006 • WASHER-SPRING 4
76 S161-060206 • SCREW-RD HD 1
101 S403-082006 • WASHER-PLAIN 4
103 S411-060006 • WASHER-SPRING 1


CAB INTERIOR 1 6080





ITEM part no DESCRIPTION QTY
2 71N6-20020 COVER-SEAT BASE 1
23 71N6-20181 TUBE 2
26 S520-115000 CLAMP-HOSE 4
27 71N6-20210 HOSE-DEFROSTER 1
28 71N6-20221 DUCT-DEFROSTER 1
29 71N6-20230 CLAMP-TUBE 2
30 S520-055000 CLAMP-HOSE 1
31 71N6-20241 DUCT-VENT 1
32 71N6-20251 DUCT-INLET 1
33 71N6-20261 DUCT-FOOT 1
50 S161-050206 SCREW-RD HD 4
58 S017-100256 BOLT-HEX 4
59 S109-080306 BOLT-SOCKET 4
60 S131-040826 SCREW-W/WASHER 2
67 S403-102006 WASHER-PLAIN 6
69 S411-080006 WASHER-SPRING 4
70 S411-100006 WASHER-SPRING 4
76 S017-100166 BOLT-HEX 2
78 71N6-20450 FILTER-SPONGE 2
81 S131-061646 SCREW W/WASHER C/RD 7


CAB INTERIOR 2 6090




ITEM part no DESCRIPTION QTY
34 71N6-20470 STORAGE BOX ASSY 1
37 71N6-20301 COVER-FILTER 1
38 71N6-20311 AIRCON COVER-UP 1
40 71N6-20331 COVER-DEF, HOSE 1
48 71N6-20360 HOSE-STORAGE BOX 1
49 71N6-20370 CUP-HOSE 2
54 S141-040166 SCREW-FLAT HD 2
63 S091-060166 BOLT-WING 3
64 S403-052006 WASHER-PLAIN 4
65 S403-062006 WASHER-PLAIN 3
67 S403-102006 WASHER-PLAIN 4
71 E171-1176 ASHTRAY 1
72 71N6-20380 AIR NOZZLE 1
73 71N6-20390 MAGNETIC 3
76 S017-100166 BOLT-HEX 4
80 S161-050206 SCREW-RD HD 4
84 S037-102026 BOLT-W/WASHER 4
85 S132-062076 SCREW-W/WASHERC/RD 8
90 71N6-20292 AIRCON COVER-LOW 1
90-1 71N6-21760 • PLATE 1
90-2 S791-016054 • GROMMET 1
90-3 S791-016010 • GROMMET 1


CONSOLE BOX (1/2, LH) 6100




ITEM part no DESCRIPTION QTY
* 71N6-20430 CONSOLE BOX ASSY-LH 1
1 71N6-20071 • CONSOLE BOX-LOW 1
2 71N6-20051 • C/BOX FRAME WA-LH 1
2-1 71N6-21320 •• BRACKET-TILT 1
2-2 S015-060146 •• BOLT-HEX 4
2-3 S403-062006 •• WASHER-PLAIN 4
2-4 S731-020025 •• BUSHING-DU 2
3 71N6-20091 • TILT CATCH ASSY 1
3-1 71N6-21420 •• TILT CATCH-LOW 1
3-2 71N6-21451 •• TILT CATCH-UP 1
3-3 71N6-21460 •• SPRING 1
3-4 71N6-21470 •• PIN 1
3-5 P560-090002 •• RING-SNAP 1
4 71N6-20100 • PULL CABLE 1
5 71N6-20120 • TILT LEVER ASSY 1
5-1 71N6-21480 •• BRACKET-LOW 1
5-2 71N6-21510 •• BRACKET-UP 1
5-3 P560-100006 •• E-RING 1
6 21 N8-20300 • SWITCH ASSY-SAFETY 1
7 71N6-20131 • CONSOLE BOX-UP(LH) 1
8 71N6-20141 • SAFETY BRACKET ASSY 1
8-1 71N6-21521 •• BRACKET-LOW 1
8-2 71N6-21560 •• BRACKET-UP 1
8-3 71N6-21610 •• SPRING 1
8-4 S731-020010 •• BUSHING-DU 1
9 SO15-050206 BOLT-HEX 4
10 S403-052006 WASHER-PLAIN 8
11 S161-060126 SCREW-CROSS R/ROUND 4
12 S403-062006 WASHER-PLAIN 9
13 S491-060156 PIN-CLEVIS 1
14 S461-080202 PIN-SPLIT 1
15 S161-060166 SCREW-RD HD 2
16 S161-050166 SCREW-RD HD 4
17 SI 75-060162 SCREW-SOCKET RD HD 3
18 S161-030162 • SCREW-RD HD 2


CONSOLE BOX (2/2, LH) 6110




ITEM part no DESCRIPTION QTY
3 71N6-20031 TILT LOCKER ASSY 1
3-1 71N6-21151 • SHAFT 1
3-2 71N6-21160 • PLATE 1
3-3 71N6-21170 • SPRING 1
34 71N6-21180 • PLATE WA 1
3-5 S207-161006 • NUT-HEX 2
4 71N6-20040 GAS SPRING 1
5 S491-080256 PIN-CLEVIS 1
6 S461-160256 PIN-SPLIT 1
10 71N6-20082 SHAFT 1
11 S601-020004 RING-RETAINING 1
12 S661-360400 CAP-RUBBER 1
15 71N6-20111 PLATE-CABLE 1
20 71N6-20151 COVER-S/LEVER 1
21 71N6-20161 ROD-SAFETY 1
35 71N6-20281 CAP-S/LEVER 1
47 71N6-20351 KNOB-TILT 1
60 S131-040826 SCREW-W/WASHER 2
62 S205-161006 NUT-HEX 1
75 S175-060166 SCREW-SOCKET RD HD 1
77 S403-162006 WASHER-PLAIN 1
79 S403-065006 WASHER-PLAIN 1
81 S131-061646 SCREW W/WASHER C/RD 4


CONSOLE BOX (RH) 6120




ITEM part no DESCRIPTION QTY
3-2 71N6-21160 • PLATE 1
3 71N6-20031 TILT LOCKER ASSY 1
3-1 71N6-21151 • SHAFT 1
3-2 71N6-21160 • PLATE 1
3-3 71N6-21170 • SPRING 1
3-4 71N6-21180 • PLATE WA 1
3-5 S207-161006 • NUT-HEX 2
8 71N6-20440 CONSOLE BOX ASSY-RH 1
8-1 71N6-20071 • CONSOLE BOX-LOW 1
8-2 71N6-20061 • C/BOX FRAME WA-RH 1
8-2-1 71N6-21320 •• BRACKET-TILT 1
8-2-2 S015-060146 •• BOLT-HEX 4
8-2-3 S403-062006 • • WASHER-PLAIN 4
8-2-4 S731-020025 •• BUSHING-DU 2
8-3 71N6-20091 • TILT CATCH ASSY 1
8-3-1 71N6-21420 •• TILT CATCH-LOW 1
8-3-2 71N6-21451 •• TILT CATCH-UP 1
8-3-3 71N6-21460 •• SPRING 1
8-3-4 71N6-21470 •• PIN 1
8-3-5 P560-090002 •• RING-SNAP 1
8-4 71N6-20171 • CONSOLE BOX-UP(RH) 1
8-5 S015-050206 • BOLT-HEX 4
8-6 S403-052006 • WASHER-PLAIN 8
8-7 S161-060126 • SCREW-CROSS R/ROUND 4
8-8 S403-062006 • WASHER-PLAIN 4
8-9 S161-050166 • SCREW-RD HD 4
10 71N6-20082 SHAFT 1
11 S601-020004 RING-RETAINING 1
15 71N6-20111 PLATE-CABLE 1
62 S205-161006 NUT-HEX 1
77 S403-162006 WASHER-PLAIN 1
81 S131-061646 SCREW W/WASHER C/RD 4


SEAT BASE ASSY 6130






ITEM part no DESCRIPTION QTY
* 71N4-20012 SEAT BASE ASSY 1
1 71N6-21011 • SEAT BASE-LOW 1
2 71N6-21073 • SEAT BASE-UP 1
3 71N4-21720 • SLIDING RAIL ASSY 1
3-1 71N6-21670 •• SLIDE ASSY-RH 1
3-2 71N6-21680 •• SLIDE ASSY-LH 1
3-3 71N6-21690 •• LEVER ASSY 1
3-4 S015-060126 •• BOLT-HEX 4
3-5 S403-062006 •• WASHER-PLAIN 4
4 S107-080306 • BOLT-SOCKET 4
5 S017-080256 • BOLT-HEX 4
6 S205-081006 • NUT-HEX 4
7 S403-082006 • WASHER-PLAIN 8
8 S411-080006 • WASHER-SPRING 4


SEAT 6140




ITEM part no DESCRIPTION QTY
* 71N6-30700 SEAT ASSY 1
1 H28333-100 • CUSHION ASSY 1
2 H28333-200 • BACK ASSY 1
3 H28333-300 • LEG ASSY 1
3-1 H28333-350 •• DAMPER 1
4 H28300-700A • ARM REST ASSY-LH 1
5 H28305-700B • ARM REST ASSY-RH 1
6 H28003-240D • RECUNER ASSY 1
7 H28334-400 • TRACK ASSY 1
8 H28003-600 • SEAT BELT ASSY 1
9 H28333-800 • HEAD REST ASSY 1
10 H95003-906 • BUSHING-NYLON 1
11 W11230-10303 • BOLT 6
12 W11286-06203 • BOLT-W/WASHER 2
13 W11230-08183 • BOLT-W/WASHER 4
14 W13395-08003 • NUT-FLANGE 4
15 H95003-3462 • NUT-BUSH 1
16 H28303-909 • TOP COVER-A/REST 2
17 W11226-06123 • BOLT-W/WASHER 1
18 H29313-901A • KNOB 1
19 W12310-05123 • BOLT & S/WASHER 1


STORAGE BOX COVER ASSY 6150




ITEM part no DESCRIPTION QTY
39 71N6-20320 S/BOX COVER ASSY 1
39-1 71N6-21721 • S/BOX COVER-UP 1
39-2 71N6-21731 • S/BOX COVER-LOW 1
39-3 71N6-21740 • HINGE 2
39-4 71N6-21750 • PLATE 3
39-5 S161-060146 • SCREW 8
39-6 S141-050106 • SCREW 4
39-7 S403-062006 • WASHER-PLAIN 8
39-8 71N6-21900 • HINGE 2
39-9 S161-050126 • SCREW 4
39-10 S403-052006 • WASHER-PLAIN 4
39-11 71N6-21920 • DOOR-PULL 1


BOTTOM PLATE MOUNTING 6160




ITEM part no DESCRIPTION QTY
1 71N6-10105 BOTTOM PLATE ASSY 1
1-1 71N6-10113 • BOTTOM PLATE WA 1
1-2 71N6-11100 • RUBBER PAD 1
1-3 71N6-11110 • RUBBER PAD 1
1-4 71N6-11120 • RUBBER PAD 1
1-5 71N6-11130 • RUBBER PAD 1
1-6 71N6-11140 • RUBBER PAD 1
1-7 71E9-10661 • COVER 1
1-8 S017-100166 • BOLT-HEX 2
1-9 S403-102006 • WASHER-PLAIN 2
1-10 S411-100006 • WASHER-SPRING 2
1-11 71E9-10630 • GROMMET 1
1-12 71E9-10640 • GROMMET-A/C 2
1-13 71N4-10940 • PAD-TRAVEL UNK 1
2 S207-161006 NUT-HEX 6
3 S403-162006 WASHER-PLAIN 6
4 S411-160006 WASHER-SPRING 6
5 71N6-10130 BRACKET-FOOT REST 1
6 71N6-10300 MOUNT-VISCOUS 6
7 S037-102526 BOLT-W/WASHER 8
8 S037-103026 BOLT-W/WASHER 4
9 S403-102006 WASHER-PLAIN 4
11 71E9-10650 WASHER-REBOUND 6
14 71N6-10141 MAT-FLOOR 1
* 71N6-10310 FOOT REST ASSY-LH 1
15 71N6-10150 • BRACKET-FOOT REST, LH 1
16 71N6-10161 • RUBBER-FOOT REST, LH 1
* 71N6-10320 FOOT REST ASSY-RH 1
17 71N6-10170 • BRACKET-FOOT REST,RH 1
18 71N6-10181 • RUBBER-FOOT REST, RH 1
19 71N6-10190 BRACKET-PEDAL, LH 1
20 71N6-10201 RUBBER-PEDAL, LH 1
21 71N6-10210 BRACKET-PEDAL, RH 1
22 71N6-10221 RUBBER-PEDAL, RH 1
23 71N6-10230 LEVER-TRAVEL, LH 1
24 71N6-10240 LEVER-TRAVEL, RH 1
25 71N6-10251 KNOB-LEVER, LH 1
26 71N6-10261 KNOB-LEVER, RH 1
29 S109-100206 BOLT-SOCKET 4
30 S206-101006 NUT-HEX 2
31 71N6-10130 BRACKET-FOOT REST 1
32 71N6-10280 MAT-FLOOR 1
33 S037-102526 BOLT-W/WASHER 4
36 S037-103022 BOLT-W/WASHER 24
39 71N4-10970 SPONGE-INSULATIO 1


COWLING 1 6200




ITEM part no DESCRIPTION QTY
9 71N7-59100 HOOD ASSY-MCV 1
9-1 71N7-5520C • HOOD WA-MCV 1
9-2 71Е9-54150 • HANDLE 1
9-3 S205-161002 • NUT-HEX 4
9-4 S681-190400 • GROMMET 2
12 71N6-56400 CATCH ASSY 2
13 71N6-55210 BRACKET-MCV HOOD, LH 1
14 71N6-55221 BRACKET-MCV HOOD, RH 1
15 71N6-56301 STAY-MCV HOOD 1
19 S501-080002 PIN-SELF LOCKING 3
20 S035-082522 BOLT-W/WASHER 8
21 S037-122552 BOLT-W/WASHER 64
23 S491-080252 PIN-CLEVIS 1
24 S403-082002 WASHER-PLAIN 2


COWLING 1 6210




ITEM part no DESCRIPTION QTY
4 71N7-53161 COVER-TANK 1
5 71N7-54101 SCREEN ASSY 1
5-1 71N7-54111 • SCREEN WA 1
5-2 71N7-54121 • SPONGE 1
5-3 71N7-54131 • SPONGE 1
5-4 71EM-51580 • CAP-STUD BOLT 15
6 71N7-54201 SCREEN-PUMP (T) 1
7 71N7-54301 SCREEN-PUMP (B/F) 1
8 71N7-54400 SCREEN-PUMP (B/R) 1
16 71N8-57101 SUPPORT-T/COVER 1
17 71N8-57200 SUPPORT-T/COVER 1
21 S037-122552 BOLT-W/WASHER 64


SIDE COWL ASSY (LH) 6220




ITEM part no DESCRIPTION QTY
* 71N7-52001 SIDE COWL ASSY-LH 1
  71N7-62000 SIDE COWL ASSY-LH 1
3 71N7-52301 • SUPPORT ASSY-L/F 1
3-1 71N7-52311 •• SUPPORT WA-L/F 1
3-2 71N8-52322 •• PLATE-COVER 1
4 72N8-52401 • SUPPORT ASSY-L/M 1
4-1 72N8-52411 •• SUPPORT WA-L/M 1
4-2 71N8-52492 •• PLATE-LOCK 2
4-3 71ЕЕ-53540 •• STOPPER-B 2
4-4 71ЕН-13150 •• BUMPER-RUBBER 2
4-5 S035-062022 •• BOLT-W/WASHER 4
4-6 3037-122052 • • BOLT-W/WASHER 4
5 72N8-52502 • SUPPORT WA-L/R 1
6 71N7-52600 • BASE PLATE WA-LH 1
7 71N7-52702 • SCREEN ASSY-MCV 1
7-1 S791-030063 •• GROMMET 1
8 72N8-52800 • SUPPORT WA-E/G HOOD 1
9 71N7-52901 • BRACKET-A/CLEANER 1
10 71N8-52950 • STAY-SIDE COVER 2
11 71N7-52981 • SUPPORT WA 1
12 11N8-20100 • AIR CLE. & CLAMP ASSY 1
12-1 11N8-20110 •• AIR CLEANER ASSY 1
12-11 11N8-20150 ••• HOUSING 1
12-12 11N6-20120 ••• CAP-AIR CLEANER 1
12-13 11ЕМ-21041 ELEMENT-PRIMARY 1
12-14 11EM-21051 ELEMENT-SAFETY 1
12-15 E211-2105 VALVE-VACUUM 1
12-16 11EM-21060 NUT-WING 2
12-17 11EM-21070 NUT-WING 1
12-2 14EA-23060 CLAMP-BAND 1
13 71N7-55102 HOODWA-A/C 1
14 11N8-41070 TANK-RESERVOIR 1
14-1 MH100020 CAP-RESERVOIR TANK 1
15 11N841080 LAMP-RESERVOIR TANK 1
16 El 11-2504 HOSE 1
17 S520-015000 CLAMP-HOSE 1
18 S681-100400 GROMMET 2
19 S035-082022 BOLT-W/WASHER 6
20 S037-122552 BOLT-W/WASHER 28


SIDE COVER ASSY (LH) 6230




ITEM part no DESCRIPTION QTY
* @ SIDE COWL ASSY-LH 1
1 71N7-52100 • SIDE COVER ASSY-LH(FR) 1
1-1 71N7-52110 •• COVER WA-LH(FR) 1
1-2 71ЕЕ-52520 •• CATCH ASSY 1
1-3 71ЕЕ-53531 •• STOPPER-A 1
1-4 S681-100400 •• GROMMET 1
1-5 S772-024000 •• WEATHER STRIP 1
1-6 S035-061622 •• BOLT-W/WASHER 2
2 71N8-52203 • SIDE COVER ASSY-LH,RR 1
2-1 71N8-52213 •• COVER WA-LH, RR 1
2-2 71N8-52242 •• SPONGE 1
2-3 71ЕЕ-52520 •• CATCH ASSY 1
2-4 71ЕЕ-53531 •• STOPPER-A 1
2-5 71ЕМ-51580 •• CAP-STUD BOLT 12
2-6 S681-100400 •• GROMMET 1
2-7 S772-026300 •• WEATHERSTRIP 1
2-8 S035-061622 •• BOLT-W/WASHER 2
21 71N8-72201 • SIDE COVER ASSY-LH.RR 1
21-1 71N8-72211 •• COVER WA-LH, RR 1
21-2 71N8-72240 •• SPONGE 1
21-3 71ЕЕ-52520 •• CATCH ASSY 1
21-4 71ЕЕ-53531 •• STOPPER-A 1
21-5 71ЕМ-51580 •• CAP-STUD BOLT 10
21-6 S681-100400 •• GROMMET 1
21-7 S772-026300 ••WEATHERSTRIP 1
21-8 S035-061522 •• BOLT-W/WASHER 2


SIDE COWL ASSY (RH) 6240




ITEM part no DESCRIPTION QTY
* 71N7-53000 SIDE COWL ASSY-RH 1
  71N7-63000 SIDE COWL ASSY-RH 1
1 71N8-53103 • SIDE COVER ASSY-RH 1
1-1 71N8-53113 •• COVER WA-RH 1
1-2 71N8-53142 •• SPONGE 1
1-3 71EE-52520 •• CATCH ASSY 1
1-4 71EE-53531 •• STOPPER-A 1
1-5 71EM-51580 •• CAP-STUD BOLT 12
1-6 S681-100400 •• GROMMET 1
1-7 S772-026300 •• WEATHERSTRIP 1
1-8 S035-061622 •• BOLT-W/WASHER 2
2 71N6-53260 • SUPPORT ASSY-RH(FR) 1
2-1 71N6-53270 •• SUPPORT WA-RH/FR 1
2-2 71N8-52492 •• PLATE-LOCK 1
2-3 71EE-53540 •• STOPPER-B 1
24 71EH-13150 •• BUMPER-RUBBER 1
2-5 S035-062022 •• BOLT-W/WASHER 2
2-6 S037-122052 •• BOLT-W/WASHER 2
3 71N7-53200 • SUPPORT WA-RH 1
4 71N8-53312 • BASE PLATE WA-RH 1
5 71N7-53400 • HOOD WA-PUMP 1
6 71N8-52950 • STAY-SIDE COVER 1
7 S681-100400 • GROMMET 1
8 S037-122552 • BOLT-W/WASHER 10
11 71N8-73101 • SIDE COVER ASSY-RH 1
11-1 71N8-73111 •• COVER WA-RH 1
11-2 71N8-73140 •• SPONGE 1
11-3 71EE-52520 •• CATCH ASSY 1
114 71EE-53531 •• STOPPER-A 1
11-5 71EM-51580 •• CAP-STUD BOLT 10
11-6 S681-100400 •• GROMMET 1
11-7 S772-026300 •• WEATHER STRIP 1
11-8 S035-061522 •• BOLT-W/WASHER 2


ENGINE HOOD ASSY 6250




ITEM part no DESCRIPTION QTY
* 71N7-51000 ENGINE HOOD ASSY 1
1 71N7-51010 • E/G HOOD WA 1
2 71N6-51101 HINGE-ENG HOOD 2
3 71N7-51200 • SPONGE 1
4 S771-067000 • WEATHER STRIP 1
5 71ЕМ-51580 • CAP-STUD BOLT 5
6 S037-122522 • BOLT-W/WASHER 6
7 71N6-51140 • STOPPER-A 2
8 S132-063052 • SCREW-W/WASHER 4


UNDER COVER 6260




ITEM part no DESCRIPTION QTY
1 41N7-10011 UNDER COVER-CAB(A) 1
2 41N7-10020 UNDER COVER-CAB(B) 1
3 41N7-10030 UNDER COVER-CAB(C) 1
4 41N8-15280 UNDER COVER-RADIATOR 1
5 41N7-10050 UNDER COVER-MCV 1
6 41N7-10060 UNDERCOVER-ENGINE 2
7 41N7-10070 UNDERCOVER-PUMP 1
8 41N7-10080 UNDER COVER-H/TANK 1
9 41N7-10090 UNDER COVER-F/TANK 1
10 41N6-10100 COVER 1
11 41Е9-1306 SEAL 1
12 S037-102562 BOLT-W/WASHER 60
13 S037-102052 BOLT-W/WASHER 2


TOOL BOX MOUNTING 6270




ITEM part no DESCRIPTION QTY
2 71N8-42005 PIPE WA 1
2-1 S015-080402 • BOLT-HEX 2
2-2 S411-080002 • WASHER-SPRING 2
4 71N8-48001 MIRROR & STAY ASSY-RH 1
4-1 71N8-47100 • MIRROR 1
4-2 71N8-48101 • STAY ASSY-RH 1
5 S390-015040 SHIM-ROUND(0.5T) 4
6 S037-122552 BOLT-W/WASHER 14
7 71N7-44100 COVER-TANK FUEL 1


TOOL BOX 6280






ITEM part no DESCRIPTION QTY
* 71N7-41000 TOOL BOX ASSY 1
1 71N7-41101 •TOOL BOX WA 1
2 71N7-41201 • COVER WELD ASSY 1
3 71N8-41300 • STAY WA 1
4 71N8-41702 •CATCH ASSY 1
5 71N8-41502 • BRACKET 1
6 71N8-41321 • GAS SPRING 1
7 S772-029500 • WEATHER STRIP 1
8 S491-080252 • PIN-CLEVIS 1
9 S461-320252 • PIN-SPUT 1
10 S035-082022 • BOLT-W/WASHER 6
11 S037-102052 • BOLT-W/WASHER 2


GROMMET GROUP 6300




ITEM part no DESCRIPTION QTY
1 41N7-50011 GROMMET KIT(A) 1
1-1 S760-031400 • GROMMET 3
1-2 S760-081800 • GROMMET 2
1-3 S760-031406 • GROMMET 1
2 41N7-50022 GROMMET KIT(B) 1
2-1 S760-112010 • GROMMET 1
2-2 S760-102200 • GROMMET 1
2-3 S760-102010 • GROMMET 1
2-4 S760-041000 • GROMMET 7


UPPER FRAME & COUNTERWEIGHT 6400




ITEM part no DESCRIPTION QTY
1 41N7-21000 COUNTER WEIGHT ASSY 1
1-1 41N7-21011 • COUNTER WEIGHT WA 1
1-2 41N8-21211 • SPONGE(A) 1
1-3 41N8-21221 • SPONGE (B) 1
1-4 41N7-21200 • SPONGE (C) 1
1-5 41N7-21210 • SPONGE (D) 1
1-6 41N8-21251 • SPONGE (E) 1
1-7 41N7-21230 • SPONGE (F) 1
1-8 S037-102522 • BOLT-W/WASHER 7
1-9 61L1-2037 • WASHER-HARDENED 7
2 S391-050100 SHIM-ROUND (1.0T) 6
3 S392-050100 SHIM-ROUND(2.0T) 6
4 S018-362002 BOLT-HEX 4
5 41N8-21271 SPACER 4
14 41N7-00011 UPPER FRAME WA 1


LOWER FRAME & COVER 6410





ITEM part no DESCRIPTION QTY
1 51N7-11110 COVER WA-T/MOTOR, LH 1
2 51N7-11120 COVER WA-T/MOTOR, RH 1
3 41N6-10100 COVER 1
4 41E9-1306 SEAL 1
5 S037-102052 BOLT-W/WASHER 2
6 S037-123552 BOLT-W/WASHER 16
7 51E6-2005 COVER WA-BOTTOM 1
8 51E6-2006 COVER WA-BOTTOM 1
9 51N6-02640 BOARD-FOOT 700MM 4
  51N6-02650 BOARD-FOOT 800MM 4
  51N6-02660 BOARD-FOOT 900MM 4
10 S017-120502 BOLT-HEX 16
11 S441-120002 WASHER-HARDENED 32
12 S207-121002 NUT-HEX 16
20 51N7-00011 LOWER FRAME WA 1


SWING RING GREASE LUB SYSTEM 6420


SWING RING GREASE LUB SYSTEM 6420


ITEM part no DESCRIPTION QTY
1 81EN-00051 SWING BEARING 1
1-1 82EN-10040 • SEAL-SWING BEARING 2
4 81 N7-00010 BOLT-REAMER 3
6 S017-240702 BOLT-HEX 36
7 S017-221202 BOLT-HEX 31
12 81N6-00110 ELBOW-90 2
13 81N6-00120 CONNECTOR Ш 2
14 81N6-00130 ELBOW-90 2
16 S543-120002 CLAMP-TUBE 2
17 S037-101556 BOLT-W/WASHER 2
19 S651-810002 NIPPLE-GREASE 3
20 S441-240002 WASHER-HARDENED 36
21 81N6-00240 TUBE-NYLON 2
Позвоните нам или сделайте запрос на info@logistvostok.com
ЛогистВостокЗапчасть - запчасти для любой китайской спецтехники в наличии и под заказ © 2024

Быстрый заказ
Пожалуйста, укажите имя и свой номер телефона, чтобы мы могли связаться с Вами
